Sentinel A28: Low-cost, compact differential pressure decay leak testing instrument

A versatile and highly advanced multi-functional leak test instrument that provides high-resolution differential pressure decay, vacuum decay, and occlusion leak testing with speed and repeatability in a compact wall mount design.

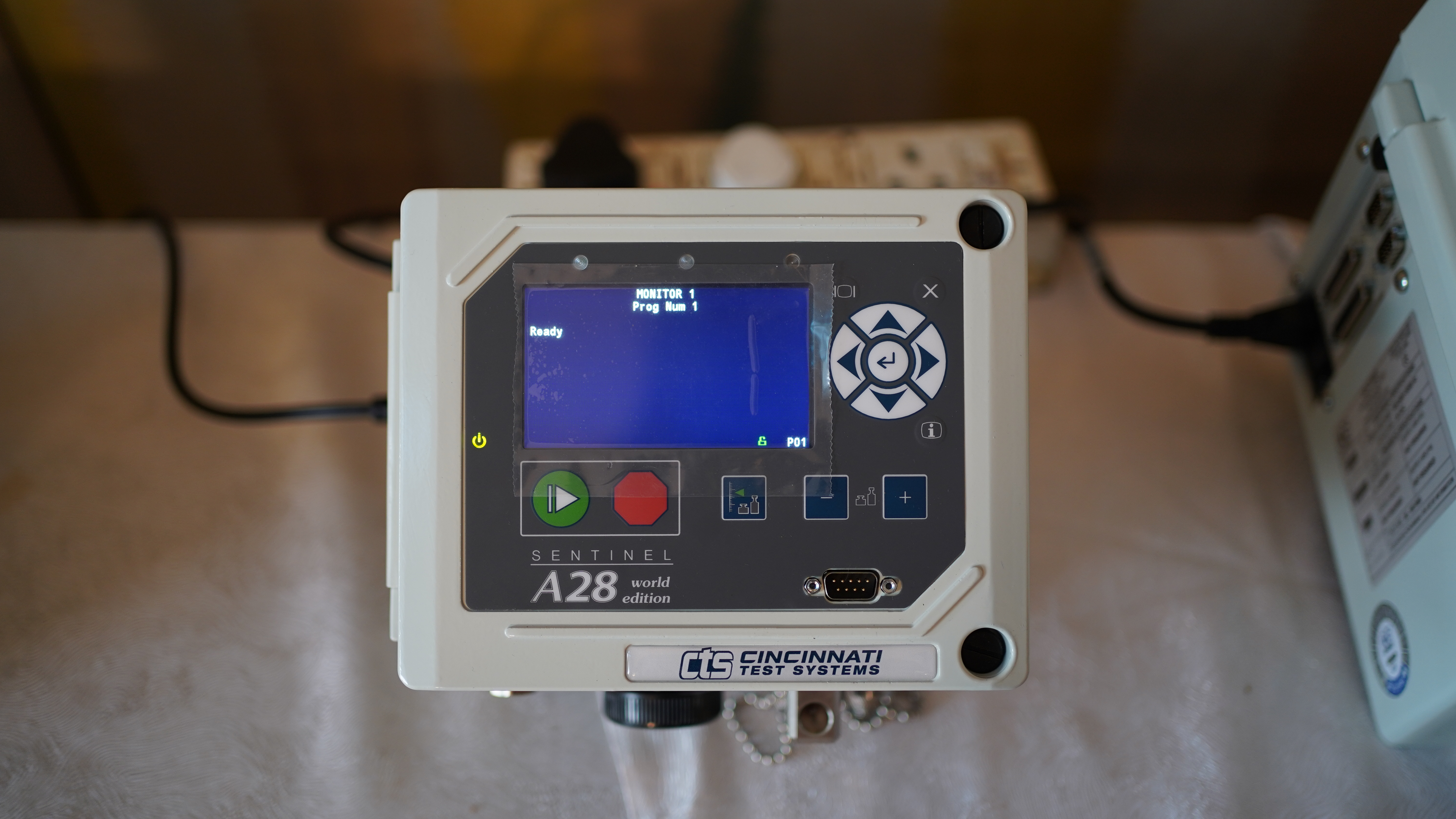

Sentinel A28

The Sentinel A28 offers fast test setup and accurate leak test performance customizable to your test requirements.

Measurement accuracy of 0.05% full-scale pressure
Differential Pressure Resolution: 0.007 Pa
Displayed resolution: Range is X - X.XXXXXX displayed units during test
Leak rate measurement resolution: DP 0.00005 scc/min
High-speed 32-bit Processor and 24-Bit A/D Converter
Auto calibration

Get A Quote

Key features of the Sentinel A28

The Sentinel A28 is ideal for simple differential pressure and occlusion testing applications. It offers high-resolution measurement in a cost-effective, compact design and with a wide variety of features that deliver an accurate, reliable leak test, including:

Program calibration with feedback for accuracy monitoring
Communications: RS232, TCP/IP, and Ethernet/IP
Different part-to-part test parameters
5,000+ tests stored in on-board memory
Global friendly control interface
Self-test diagnostic verification
Internal Leak Standard located on the valve manifold
External Leak Standard located on the bottom of the unit with quick-disconnect port
External electronic vacuum pump available
Used for Sealed component leak testing

Sentinel A28 test types

Differential Pressure Decay Test Types

Test Types

DP Pressure/Vacuum Decay - Leak Standard
DP Pressure/Vacuum Decay - ΔP
DP Pressure/Vacuum Decay – ΔP/ΔT
DP Pressure/Vacuum Decay - Leak Rate
Occlusion – Pressure or Vacuum

Measurement Resolution

Range	Measurement	Resolution
0-115 psia	-14.7 to 100 psig	0.000021 psig

Your leak test specialists in India

Let our leak test application engineers support you as you design or refine your leak test. We will identify the best methods and instruments from our wide range of solutions from global-leading leak tester brands, ensuring you get the best and most cost-effective leak testing solutions to ensure product quality on your line.

FAQ

Sciemetric Technologies India Private Limited (TASI India) is the concerned company involved in installation, services and repair for all the Cincinnati Test Systems (CTS) test instruments and machines.

An acceptable leak rate refers to the maximum quantity of fluid that can escape from a product or system within a specified time frame, while still ensuring the product remains functional and safe. This threshold is determined by either the manufacturer's internal quality standards or by external regulatory requirements applicable to the specific industry.
